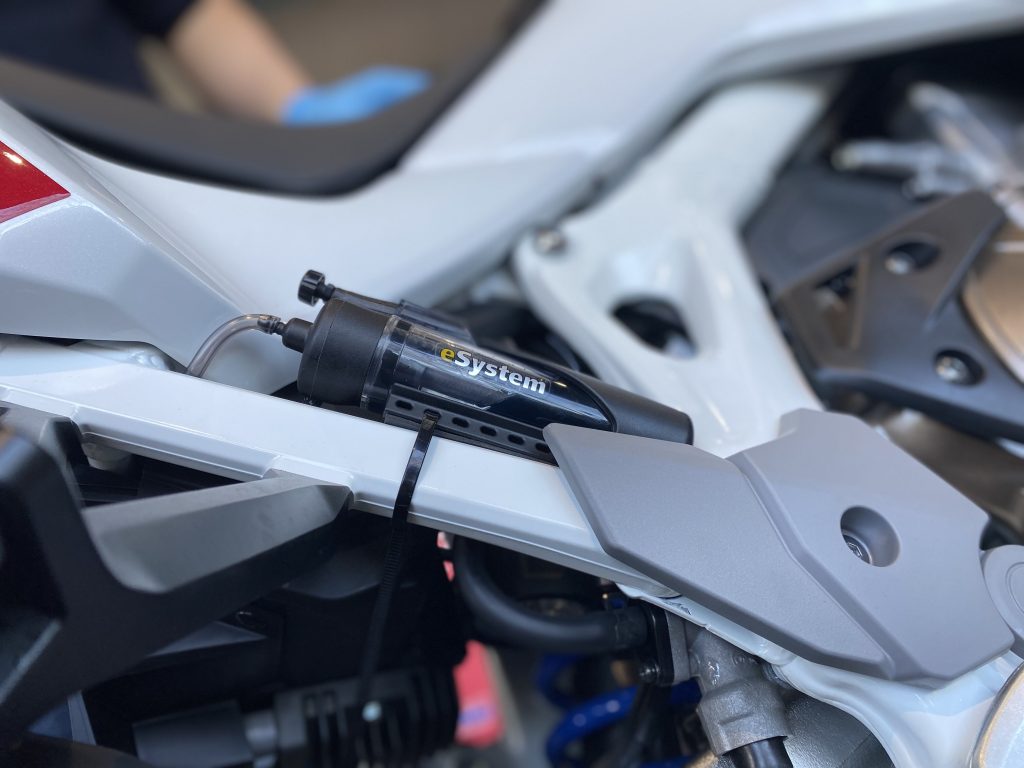

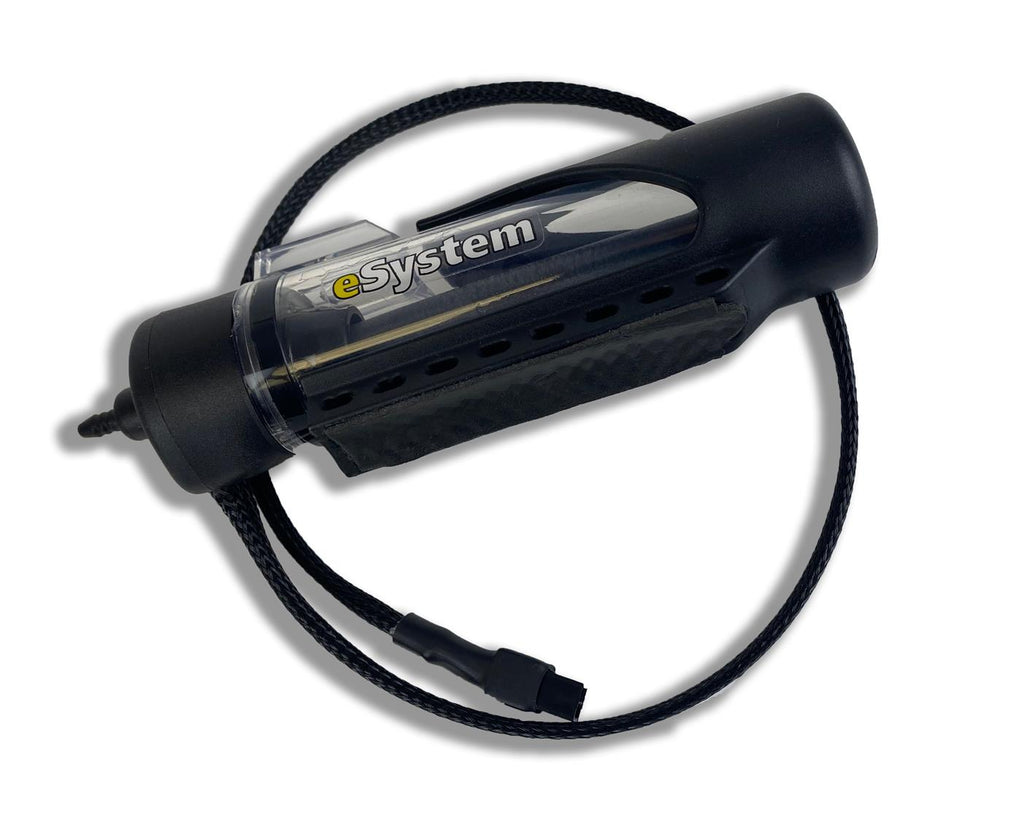

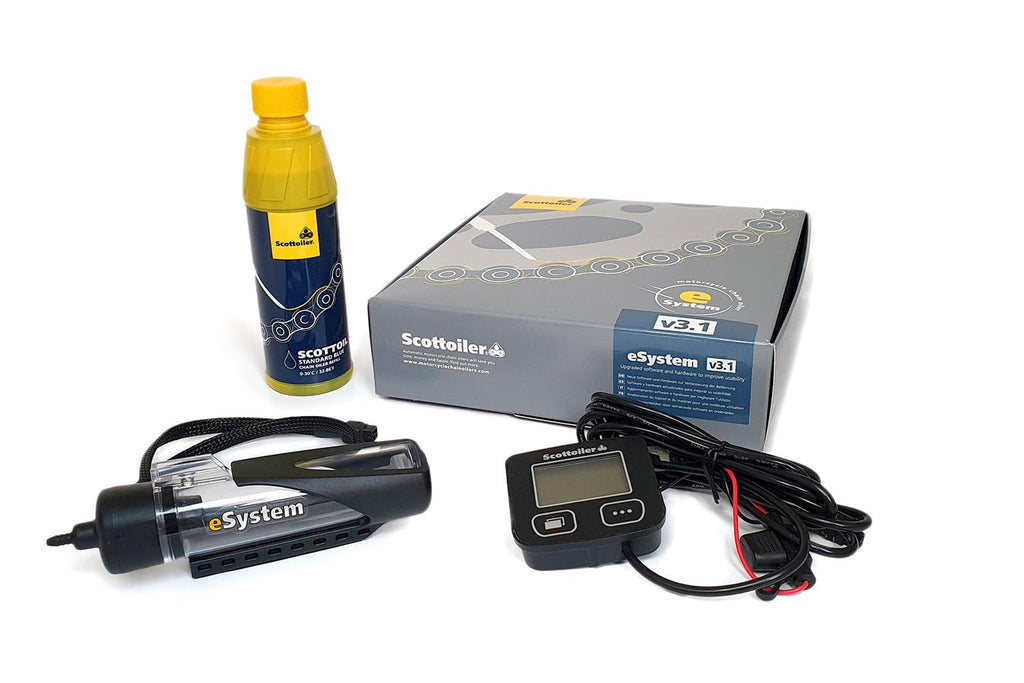

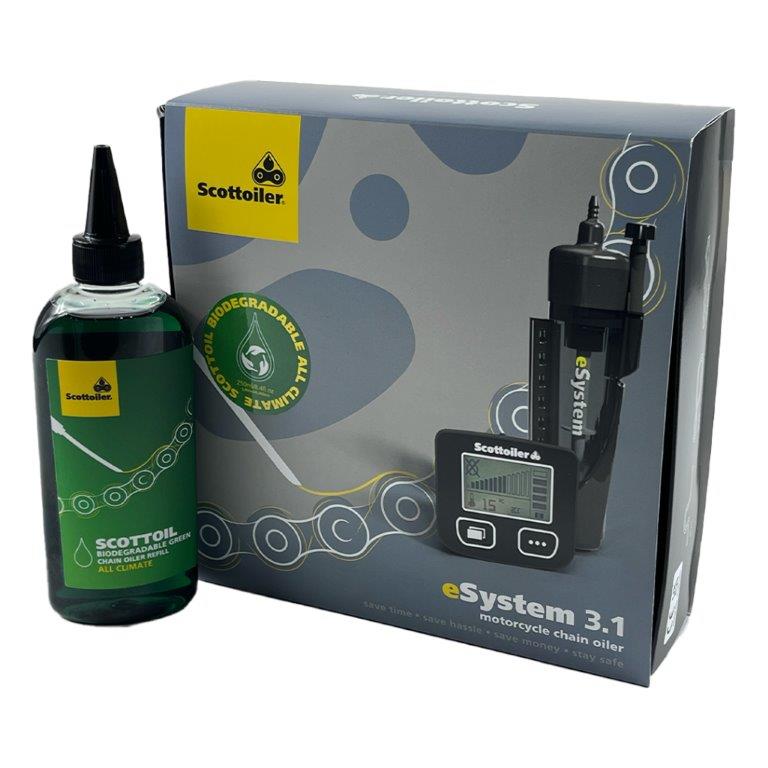

As the most advanced electronic chain oiling system in the world, the new Scottoiler eSystem v3.1 is designed for the rider who wants total control over their bike. Connecting to your bike’s battery, the eSystem LED Display sits on your handlebars, allowing you to adjust oil flow-rates with ease. The reservoir can be easily installed on the mainframe of the bike, with dispenser, cabling and oil provided. The new eSystem v3.1 builds on previous eSystem models with some clever updates - now even more user-friendly, v3.1 self-calibrates, allowing for an even quicker start-up and more flowrate settings for ultra-precise, measured and gradual oiling of your chain. And, coming back to your bike after winter, the new eSsytem now retains all pre-establish settings, even when disconnected from the battery.
How it works
The eSystem is an electronically pumped motorcycle chain oiler requiring only a small power feed from the battery to operate. It can be installed on most bikes in under an hour by connecting the wiring loom to the battery.
The eSystem is designed to give the rider maximum flexibility and adjustability of their oil flow rate and allows for simple, one-touch changes to adjust the rate to suit conditions. The eSystem senses vibration and movement with a triple axis accelerometer, using technology derived from MotoGP. It will sense when the engine is running and power on, then once moving – even at constant motorway cruising speeds – the sensor will monitor engine vibrations and trigger the system’s oiling mode. The system displays this information on the screen along with the flow rate, the temperature in Celsius, and oil level alongside the accelerometer readout.
- Electronic system
- Pumped feed
- Easy installation straight to the motorcycle battery
- Temperature independent
- Easy adjustment controls located between handlebars
- 60ml reservoir
- 14 flow rate settings
- Visual feedback on multifunction dashboard display
- Self-calibrating
- Memory retaining flow-rate settings
Scottoiler has a large library of bike-specific fitting guides for the eSystem, click here to learn how to install an eSystem on your motorycle.
